TransitMaster 140 | Escalators - KONE Australia

Product information

Description

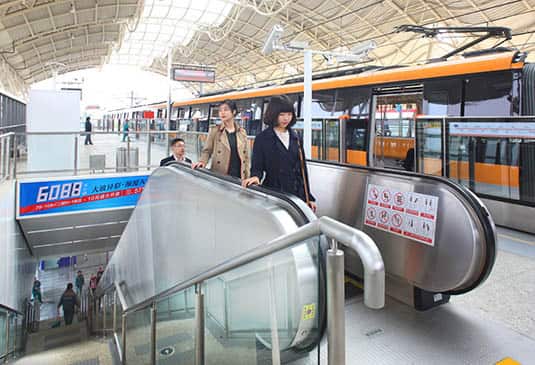

The KONE TransitMaster™ 140 is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.

Specifications

  • Operational environment: indoor, semi-outdoor, outdoor
  • Speed: 0.5, 0.65, 0.75 m/s; duty cycle 20 hours/day
  • Inclination: 27.3–30º
  • Step width: 1000 mm
  • Vertical rise: up to 35 m

Safety

  • Safety is the starting point for every KONE solution. KONE TransitMaste 140 conforms to all local and international safety codes.
  • We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator toolbox

Helps you create detailed specifications – as well as customised CAD drawings for preliminary planning – for KONE TravelMaster 110, 115 and KONE TransitMaster 120 solutions.

Escalator Designer for TransitMaster 140

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TransitMaster 140 escalator.

KONE TransitMaster™ 140

This guide details the options and planning dimensions for the KONE TransitMaster 140, which is a heavy-duty escalator for transport hubs such as railroad and metro stations.

Environmental product declaration

The Environmental Product Declaration (EPD) provides you as a KONE customer with information on the environmental performance of KONE products and services.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE solutions for airports

Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.

KONE People Flow Intelligence

Our comprehensive, flexible People Flow Intelligence solutions help people move around your building quickly and comfortably while improving security. (2.09mb)

Options and highlights

Travelmaster 140

ECO-EFFICIENCY

  • Smart operational modes and inverter optimise energy consumption under different load conditions
  • Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • The optional KONE Direct Drive is up to 20% more energy efficient than conventional worm-gear drive solution
  • The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
  • The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk
Travelmaster 140

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including

  • Audible alarms and traffic signalisation provide clear guidance on escalator travel direction
  • Alarm for travel direction if passengers enter an escalator in the wrong direction
  • New traffic signalization solutions and colored step demarcations for extra visual guidance
  • Four-step horizontal section at the top and bottom of the escalator makes exit and entry smooth and safe
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 120

DESIGN

High quality visual design for the best possible user experience

  • Innovative and attractive lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonised look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Related topics

Other escalator solutions

Product name
Description (+type)
Segment
Maximum rise
Speed
Inclination
Duty cycle
Environment
TravelMaster™ 110
escalatorCommercial, retail, hotel, office
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
Indoor, outdoor, semi-outdoor
TravelMaster™ 115
Inclined autowalkCommercial, retail, hotel, office
8 m
0.4, 0.5 m/s
10°, 11°, 12°
12-16 hours/day
Indoor, semi-outdoor
TransitMaster™ 120
escalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20-24 hours/dayIndoor, semi-outdoor, outdoor
TransitMaster™ 165
horizontal autowalkInfrastructure
15-60 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
TransitMaster™ 185
horizontal autowalkInfrastructure
15-100 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
